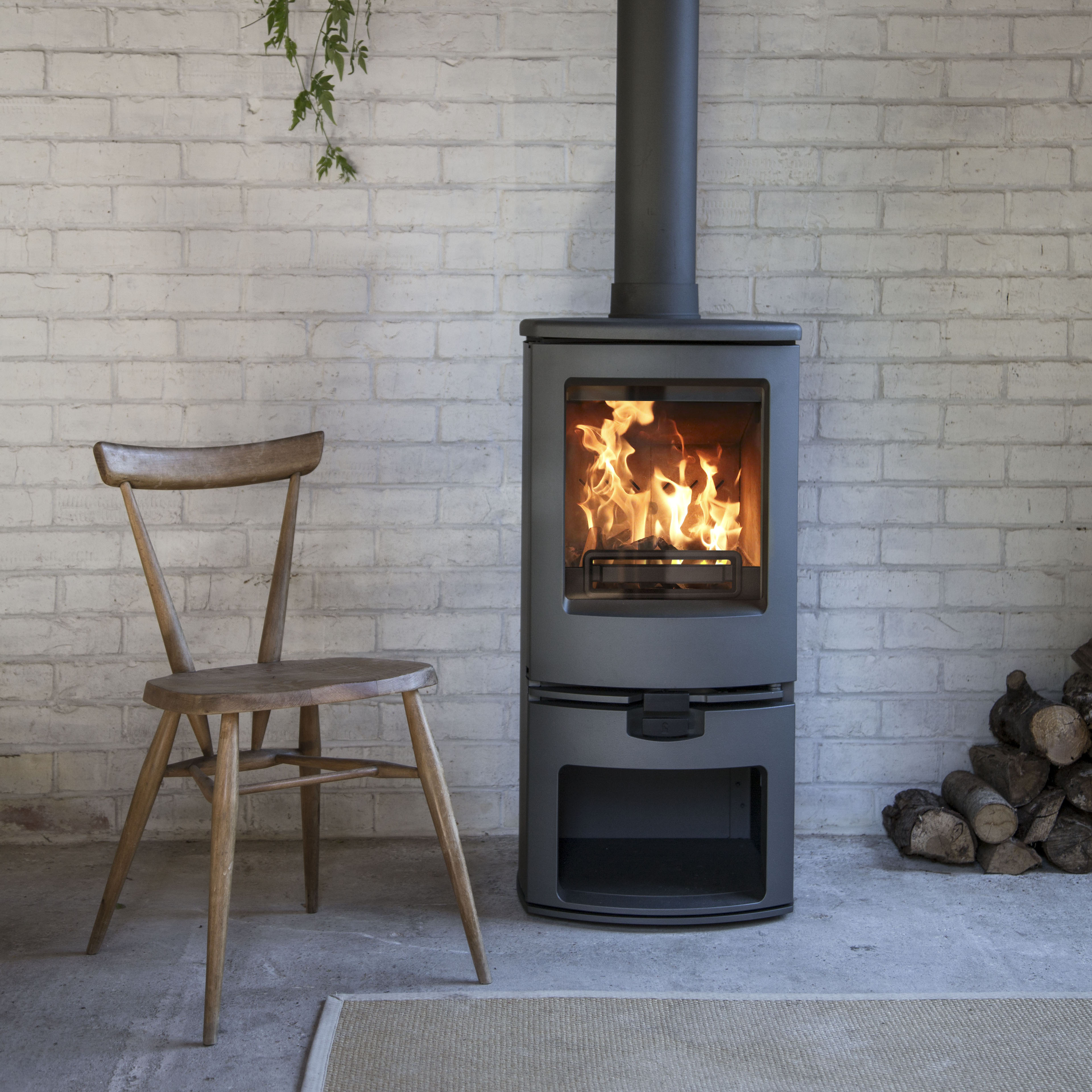

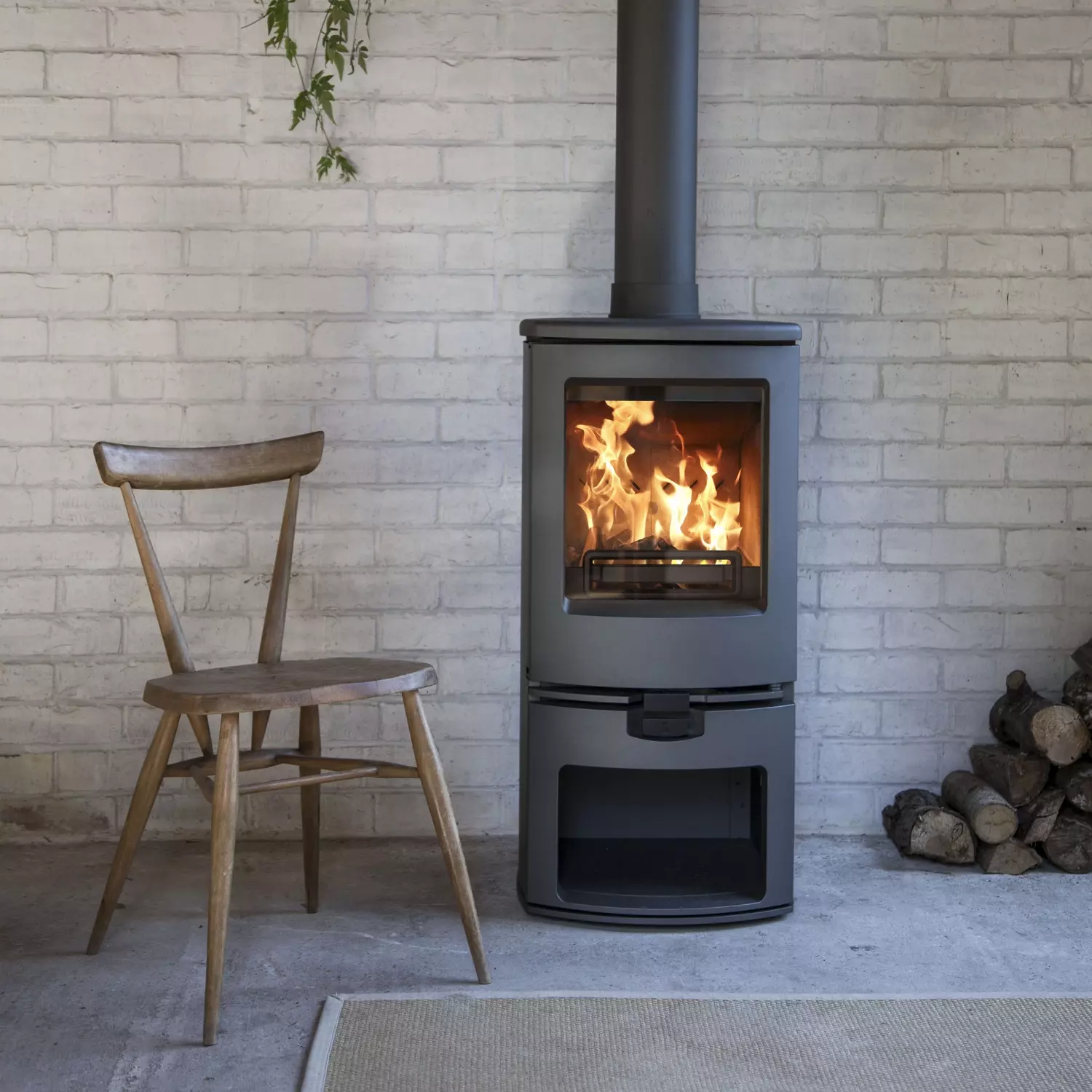

A revolutionary new wood burning and multi-fuel stove from British manufacturers, Charnwood. The Arc has a very clean and modern design and includes a new innovative combustion system that makes sure that the stove will burn especially clean and with very high efficiency. The Charnwood Arc also makes the whole process of burning wood and smokeless fuels a lot more simple, setting the benchmark for a new generation of stoves.
The side and rear convection panels on the Arc makes it so that it can be installed into tight spaces by reducing the distance to combustibles. The Arc also has an adjustable converting grate that make sit simple to burn both wood or multi-fuels. The Air control is very simple to use and includes Charnwoods patented Quattroflow air management system.
The Arc is available in eight different colours; Black, Gunmetal, Brown, Green, Bronze, Pewter, Almond and Blue. You can check the Charnwood Colours here
Features:
- SIA Eco Design Ready
- Cleanburn air wash technology
- Quattroflow air management system
- Converting grate
- Drop down throat plate enabling the chimney to be swept through the stove.
- DEFRA exempt for burning wood in smoke control areas
- Exceeds new Eco Design standards
- Meets the UK building requirements for installation with a 12mm non-combustible hearth.
- Product Variants
- Dimensions
- Width
- 453 mm
- Depth
- 445 mm
- Height
- 733 mm

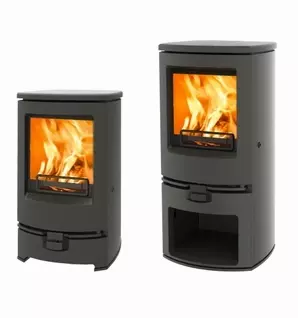

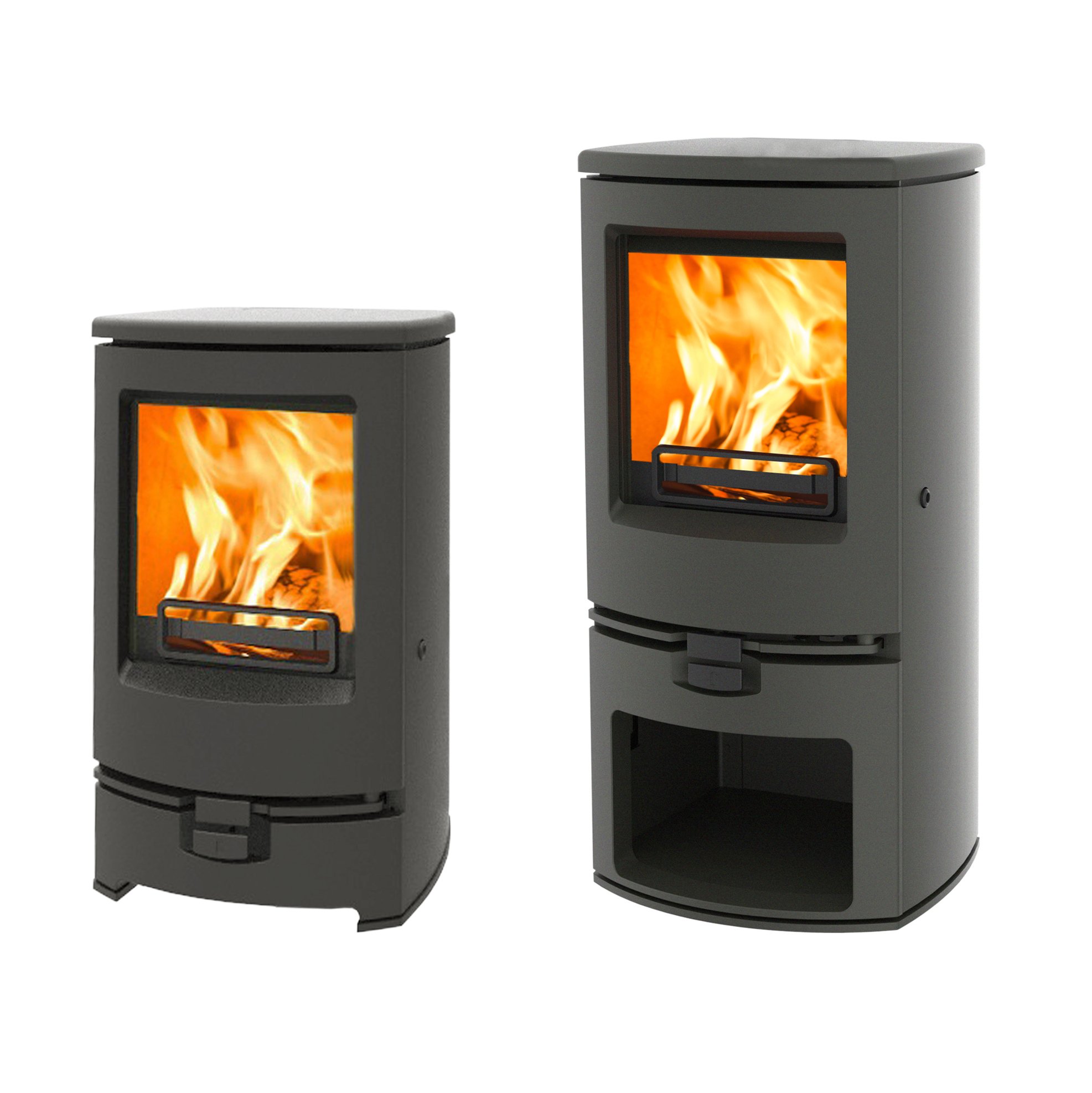

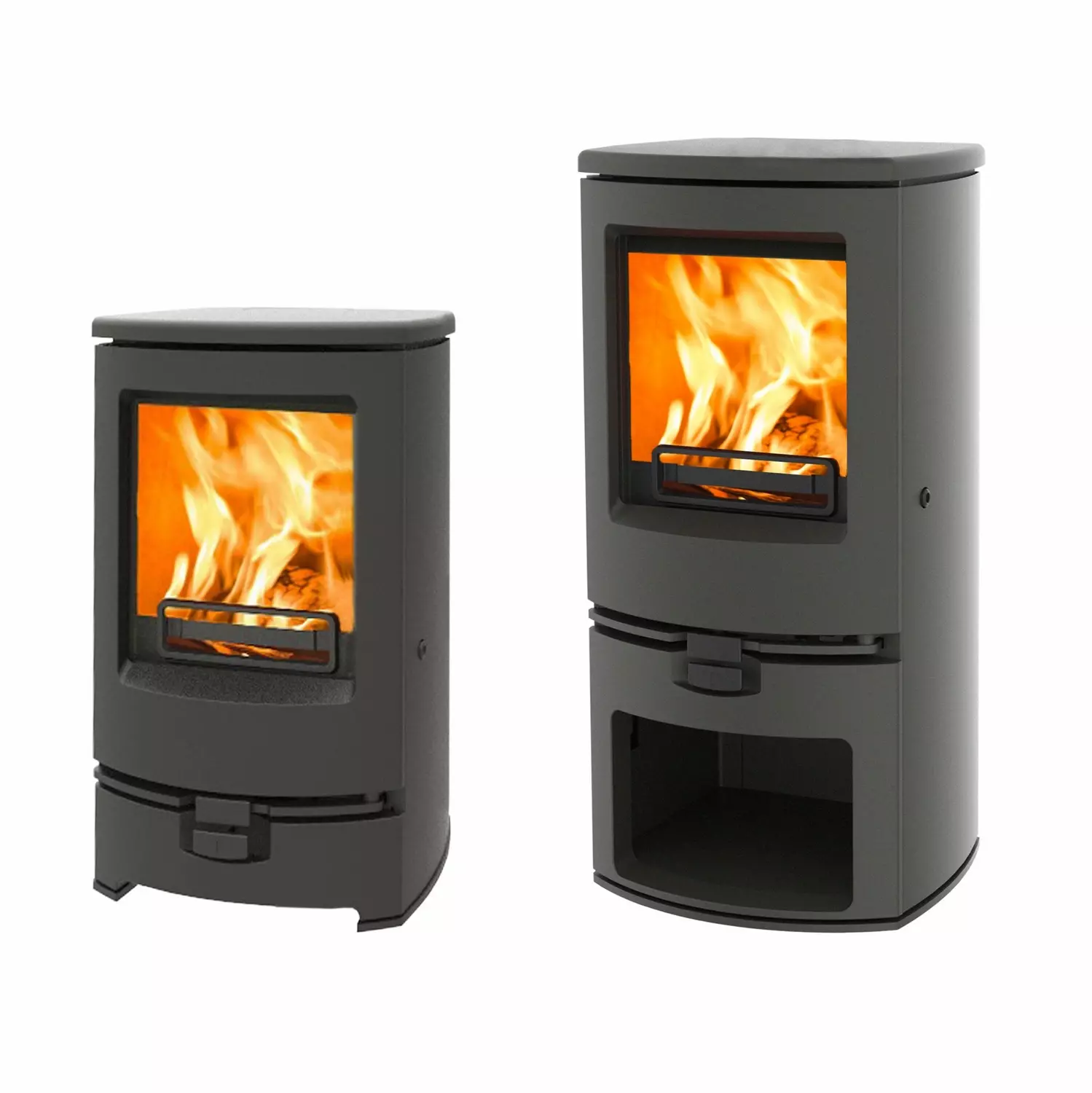

- Height (Log Store)
- 933 mm
DISTANCE TO NON-COMBUSTIBLE MATERIALS
- Sides
- 150 mm
- Rear
- 150 mm
DISTANCE TO COMBUSTIBLE MATERIALS
- Sides (Single Skin/Twin Wall)
- 300mm / 270 mm
- Rear (Single Skin/Twin Wall)
- 200 mm / 80 mm
- Width
- Technical Information
- Nominal Heat Output
- <= 5kW
- 5kW
- Nominal Output Search Filter
- 4-6kw
- Additional Features
- 12mm Hearth Friendly
- Direct Air Kit Available
- Position
- Freestanding
- Finish
- Matt
- Colour
- Flue Exit
- Top Exit
- Rear Exit
- Emission Standards
- EcoDesign Ready
- Flue Diameter
- 130mm (5")
- Fuel Option
- Multi-fuel
- Style
- Modern
- Tall Stoves
- Nominal Heat Output
- Request More Information
- Reviews
- What is a Verified Purchase?It means that the customer who wrote the review has also purchased this item.
You may find this information useful in helping you decide whcih reviews are most helpful in making your purchasing decisions.
If a review is not marked as a Verified Purchase it does not mean that the reviewer has no experience of this item as they may have one which they have acquired from elsewhere.
-
CHARNWOOD COOKING PLATE
CHARNWOODCOOKINGPLATE
The cast iron plate incorporates conduction fins on the underside and simply replaces the blanking plate on a standard Charnwood stove to create a highly effective hot plate for cooking.
The cooking plate is ideal for stoves installed into open-plan living areas where the boundaries of cooking, dining and lounging are merged. The set includes four cast iron trivets for versatility when cooking and the plate is available in two sizes; five or six inch outlet diameters to suit most Charnwood models in addition to the Island II.
Please note: the stove will need to be installed using the rear outlet to allow the cooking plate to be fitted on the stove top.
-
CHARNWOOD TOASTING FORK
CHARNWOODTOASTINGFORK
The Charnwood toasting fork is a neat, highly effective stove accessory designed for use on all Charnwood stoves!
Simply fix the magnetic holder to the stove top and suspend the fork in front of the glass for perfectly toasted bread, muffins or crumpets. The fork and holder are British made from stainless steel with a turned beech handle.
